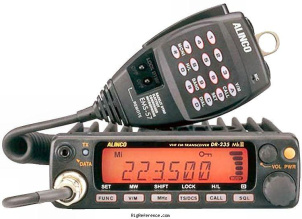

The Alinco DR-235T MKII is a Mobile VHF Transceiver. It covers 216-278 MHz (after modification: RX/TX 200-299.995 MHz depending on VCO alignment) and transmits on 222-225 MHz. It has an RF output of High: 25 W, Medium: 10 W, Low: 5 W. It features CTCSS, DCS and DTMF. 1K2/9K6 TNC option. Theft alarm Digital voice board option (requires at least two similarly equipped radios). The radio weighs 1 kg. Current drain is Max 600 mA while receiving and Max 8 A while transmitting. Dimensions are 40 × 142 × 174 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 101 channels in 1 bank(s)
Receiver
- RX-range
- 216-278 MHz (after modification: RX/TX 200-299.995 MHz depending on VCO alignment)
- Modulations
- FM
- Sensitivity
- 0.25 µV (12 dB SINAD)
- Selectivity
- 12 kHz (-6 dB), 28 kHz (-60 dB)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 222-225 MHz
- Modulations
- FM
- RF-output
- High: 25 W, Medium: 10 W, Low: 5 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 600 mA
- TX
- Max 8 A
Physical
- Dimensions (w×h×d)
- 142 × 40 × 174 mm (5.59 × 1.57 × 6.85 in)
- Weight
- 1,000 gr (2.2 lbs)
- Form factor
- Mobile
- Manufactured
- Between 200x and 2007 in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS, DCS and DTMF. 1K2/9K6 TNC option. Theft alarm Digital voice board option (requires at least two similarly equipped radios)
- Accessories
- -
- RigReference ID
- 2320
- MPN
- ALINCO-DR-000235T-MKII
