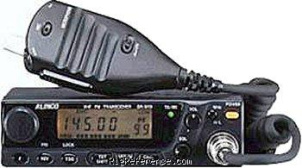

Alinco DR-M10H

Mobile VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Alinco DR-M10H rigs and spare parts on eBay

The Alinco DR-M10H is a Mobile VHF Transceiver. It covers 144-146 MHz for both receive and transmit. The RF output is selectable between High: 50 W and Low: 5 W. Image rejection is 60 dB. It features 1 memory bank with 100 channels. Power requirements are 13.8V DC. Current drain is 0.8 A in receive mode and Max 10 A in transmit mode. Dimensions are 40 × 140 × 154 mm. It weighs 860 gr.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: 100 channels in 1 bank(s)

Receiver

RX-range: 144-146 MHz
Modulations: FM
Sensitivity: ?
Selectivity: 6 kHz (-6 dB), 15 kHz (-60 dB)
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: 60 dB
Audio output: ?

Transmitter

TX-range: 144-146 MHz
Modulations: FM
RF-output: High: 50 W, Low: 5 W

Connections

Antenna: -
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: 0.8 A
TX: Max 10 A

Physical

Dimensions (w×h×d): 140 × 40 × 154 mm (5.51 × 1.57 × 6.06 in)
Weight: 860 gr (1.9 lbs)
Form factor: Mobile
Manufactured: Between 199x and 199x in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 2341
MPN: ALINCO-DR-M000010H

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
