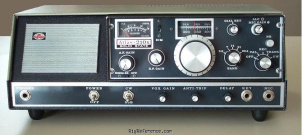

The Atlas 210X is a 10-80 m transceiver. Maximum RF output is 100 W. Power requirements are 13.8V DC. Current drain in receive mode is 300-500 mA and maximum current drain in transmit mode is 16 A. Dimensions are 90 × 250 × 250 mm.
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 10-80 m
- Modulations
- CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-80 m
- Modulations
- CW SSB
- RF-output
- 100 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 300-500 mA
- TX
- Max 16 A
Physical
- Dimensions (w×h×d)
- 250 × 90 × 250 mm (9.84 × 3.54 × 9.84 in)
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 197x and 197x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2379
- MPN
- ATLAS-000210X
Manuals, diagrams and brochures
- Atlas 210x / 215x Installation, Operation and Maintenance Manual PDF - 2.82 MB, submitted by Gerd
- Upload relevant documents
Reviews & stories
| Rating | Title | Submitted |
|---|---|---|
| Sehr einfach zu bedienendes KW-Mobilgerät mit gutem Wirkungsgrad | 8 years ago by Benny |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Atlas 210X. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Atlas 210X is around:
- USD 13.00
These estimates are based on the following prices:
