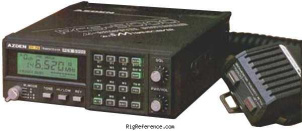

The Azden PCS-5000 is a mobile VHF transceiver. Frequency range is 144-146 MHz (Europe) or 144-148 MHz (USA). The radio features one memory bank with 20 channels. RF output power is selectable between high (25 W) and low (5 W). Current drain in receive mode is Max 300 mA, and Max 6 A in transmit mode. Dimensions are 50 × 140 × 182 mm. The PCS-5000 features CTCSS. Power requirements are 13.8V DC.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 20 channels in 1 bank(s)
Receiver
- RX-range
- 144-146 MHz (Europe)
144-148 MHz (USA) (140-152 MHz after modification) - Modulations
- FM
- Sensitivity
- 0.2 µV (12 dB SINAD)
- Selectivity
- 12 kHz (-6 dB), 30 kHz (-60 dB)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz (Europe)
144-148 MHz (USA) (140-152 MHz after modification) - Modulations
- FM
- RF-output
- High: 25 W, Low: 5 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 300 mA
- TX
- Max 6 A
Physical
- Dimensions (w×h×d)
- 140 × 50 × 182 mm (5.51 × 1.97 × 7.17 in)
- Weight
- 1.40 kg (3.1 lbs)
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS
- Accessories
- -
- RigReference ID
- 2426
- MPN
- AZDEN-PCS-005000
