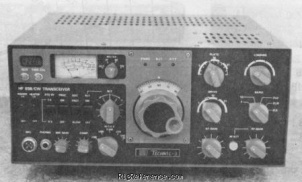

Bando Technic-3

Desktop Shortwave Transceiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

Find Bando Technic-3 rigs and spare parts on eBay

The Bando Technic-3 is a 15/30/40 m transceiver. Frequency stability is 300 Hz. The IF frequencies are 1st: 5 MHz and 2nd: 455 kHz with image rejection greater than 70 dB. RF output is 100 W. Power requirements are Mains. Dimensions are 145 × 330 × 340 mm. The Technic-3 was manufactured in Korea from 19xx to 19xx.

General characteristics

HAM bands: ?
Frequency stability: 300 Hz
Tuning steps: ?
Memories: ?

Receiver

RX-range: 15/30/40 m
Modulations: CW USB LSB
Sensitivity: 0.2 µV (10 dB S/N)
Selectivity: SSB: 2.4 kHz (-6 dB)
CW: 4.4 kHz (-60 dB)
Filters: ?
Receiver system: ?
IF-frequencies: 1st: 5 MHz
2nd: 455 kHz
Image rejection: >70 dB
Audio output: ?

Transmitter

TX-range: 15/30/40 m
Modulations: CW USB LSB
RF-output: 100 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: Mains
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 330 × 145 × 340 mm (12.99 × 5.71 × 13.39 in)
Weight: 15.00 kg (33.1 lbs)
Form factor: Base Station
Manufactured: Between 19xx and 19xx in Korea

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 2439
MPN: BANDO-TECHNIC-000003

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Bando Technic 3 & 5 Instruction manual PDF - Unknown size, submitted by RigReference
