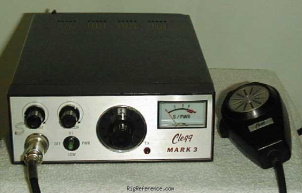

The Clegg Mark 3 is a VHF transceiver. It covers the frequency range of 144-148 MHz for both transmit and receive. The radio features one memory bank with 12 channels. RF output power is selectable between High: 15 W and Low: 1 W. It requires 13.8V DC power. Current drain in receive mode is 200 mA, and maximum current drain in transmit mode is 3.2 A.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 12 channels in 1 bank(s)
Receiver
- RX-range
- 144-148 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- XTAL
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- FM
- RF-output
- High: 15 W, Low: 1 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 200 mA
- TX
- Max 3.2 A
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Unknown
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2494
- MPN
- CLEGG-MARK-000003
