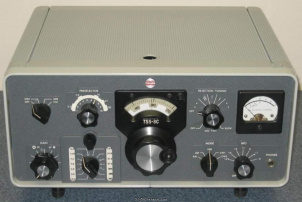

The Collins 75S-3C matches the Collins 32S-3 transmitter. This rig is very similar to the Collins 75S-3B, which doesn't feature the 14 crystal positions.

General characteristics

HAM bands
80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m
Frequency stability
?
Tuning steps
?
Memories
14 channels in 1 bank(s)

Receiver

RX-range
10-80 m + 14 additional 200 kHz crystal positions
Modulations
AM   CW   USB   LSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
Requires external speaker

Connections

Antenna
RCA (Tulip)
Impedance
50 Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
375 × 197 × 317 mm (14.76 × 7.76 × 12.48 in)
Weight
9.10 kg (20.1 lbs)
Form factor
Base Station
Manufactured
Between 1964 and 1975 in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
S-Meter
Preselector
100 kHz Crystal Calibrator
Rejection Tuning
AGC OFF/SLO/FST
BFO and Fiduciary Adjust
Accessories
-
RigReference ID
2519
MPN
COLLINS-000075S-3C

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Collins 75S-3C. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Collins 75S-3C in Good condition is around:

  • USD 667

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2010 USD 750.00 Used / Good eBay
