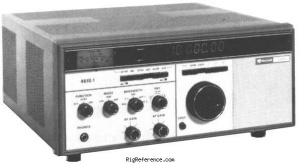

Collins 451S-1

General characteristics

HAM bands

?

Frequency stability

Within 1100 Hz (or 120 Hz using optional oven standard) over the temperature range of 0-50 °C.

Tuning steps

Selectable steps of 10 Hz, 100 Hz, 1 kHz or 1 MHz; 200 steps per revolution (20 for 1 MHz steps) of tuning knob.

Memories

None

Receiver

RX-range

0.2-30 MHz

Modulations

AM   CW   USB   LSB   FSK

Sensitivity

(at 1.6 to 30 MHz, not more than antenna input) 0.5 µV for 10 dB S+N/N for SSB and CW using 2.1 kHz filter and 3.5 µV in AM (30% mod 1 kHz) using 6-kHz filter 0.2 to 1.6 MHz, not more than 1.5 µV SSB/CW and 10 µV AM for above conditions.

Selectivity

Filter -3dB Min -60 dB Max
6.0 6.0 kHz 30.0 kHz
2.1 2.1 kHz 4.4 kHz
360 360 Hz 1250.0 Hz

optional
AC-3811 140 Hz 600 Hz
AC-3812 1.7 kHz 3.4 kHz
AC-3814 3.0 kHz 9.0 kHz

Filters

?

Receiver system

Double conversion superheterodyne (?)

IF-frequencies

1st: ?
2nd: 455 kHz

Image rejection

≥ 60 dB

Audio output

Internal speaker

Connections

Antenna

BNC

Impedance

50Ω

Other

-

Electrical

Power requirements

Mains or 13.8 V DC

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

394 × 191 × 457 mm (15.51 × 7.52 × 17.99 in) with feet

Weight

12.70 kg (28.0 lbs)

Form factor

Base Station

Manufactured

Between 19xx and 19xx in USA

Other features

Usage

Amateur / Ham radio operators

Features + options

Passband tuning
Built-in AC/DC power supply
Built-in speaker
Digital frequency readout

Accessories

-

RigReference ID

2520

MPN

COLLINS-000451S-1

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Collins 451S-1. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Receiver equipment, the estimated value of the Collins 451S-1 is around:

• USD 140 ~ USD 260

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
