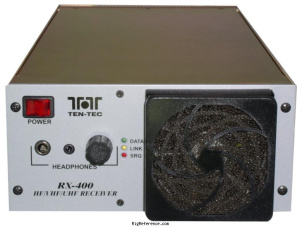

Ten-Tec RX-400

Desktop Shortwave receiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Ten-Tec RX-400 rigs and spare parts on eBay

Find the Ten-Tec RX-400 on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

The RX-400 is a HF/VHF/UHF DSP Receiver. Tuning from 2 MHz to 3 GHz, the 1 ms synthesizer lock time provides realistic scan rates of 100 channels/sec or faster. One outstanding benefit of the DSP architecture is more than 50 built-in filter bandwidths from 100 Hz to 300 kHz, most useable in any detection mode. Strong signal handling is assured with a typical in-band 3rd order intercept of -3 dBm. In addition to conventional AGC presets, RX-400 includes a programmable mode. This allows the customer to build their own unique AGC characteristics specifically for a mission. A 21.4 MHz wideband IF output is provided with 6 MHz of bandwidth. The RX-400 includes both an RS-232 interface and TCP/IP. Receiver is modestly sized for ½ rack installation. Options will include: a Digital Data output, Narrowband IF output and a POTS interface to allow customer to remote unit anywhere with access to nothing but a phone line (no PC required).

General characteristics

HAM bands: ?
Frequency stability: Standard TCXO: below 30 MHz +/- 20 Hz, above 30 MHz +/- 0.5ppm
Tuning steps: 0.001 kHz
Memories: 1000 channels in bank(s) @ 100 channels/second

Receiver

RX-range: 2MHz - 3.0 GHz
Modulations: All mode AM N-FM W-FM CW USB LSB ISB
Sensitivity: SSB, 10 db S/N: 3 kHz@-117dBm
AM (50% mod), 10 db S/N: 6.0 kHz@-108dBm
FM-N @ 6 kHz dev, 16 dB SINAD: 15 kHz@-107dBm
FM-W @ 10-20 kHz dev, 16 dB SINAD: 30-50 kHz@-102dBm
FM-W @ 75kHz dev, 16 dB SINAD: 200 kHz@-96dBm
Selectivity: Selection is mode independent. Approx. 50 filter bandwidths with 8-10 chosen appropriately for each of the 5 modes. Shape factor 1.5:1 or better. (6 to 60 dB).

Examples, useful for: CW-100,150,200,250,300, 400, 500, 600, 700, 800, 1000 Hz SSB-1.5, 1.6, 1.7, 1.8, 1.9, 2.0, 2.2, 2.4, 2.6, 3.0, 3.4 kHz AM- 4.0, 5.0, 6.0, 7.0, 8.0, 9.6, 10.4, 12.0, 13.6, 15.2,16kHz WFM-100,120,140,150,160,180, 200, 250, 300 kHz
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: 80 dB typical 2-3000 MHz
Audio output: Line + Headphones

Connections

Antenna: SMA
Impedance: 50Ω
Other: -

Electrical

Power requirements: 90-264 VAC, 48-440 Hz; optional 11-28V DC power supply
Current drain RX: 36W
TX: -

Physical

Dimensions (w×h×d): 190 × 89 × 432 mm (7.48 × 3.50 × 17.01 in) Without knobs and fan
Weight: 4.65 kg (10.3 lbs)
Form factor: Base Station
Manufactured: Between 2009 and in USA

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 4565
MPN: TEN-TEC-RX-000400
