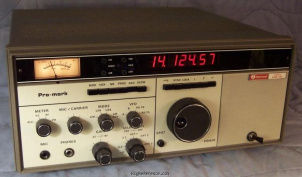

Military version of the Collins KWM-380. About 1200 units were manufactured.

General characteristics

HAM bands
160m  80m  40m  20m  15m  10m
Frequency stability
?
Tuning steps
1MHz / 1kHz / 100Hz / 10Hz
Memories
?

Receiver

RX-range
10-160 m (0.5-30 MHz continuous)
Modulations
AM   CW   USB   LSB
Sensitivity
1.6-30MHz: 1µV antenna input voltage results in 10dB S/N
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
Greater than 60 dB
Audio output
?

Transmitter

TX-range
0.5-30 MHz
Modulations
CW   USB   LSB
RF-output
100-120W

Connections

Antenna
-
Impedance
50Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
3 A
TX
20 A

Physical

Dimensions (w×h×d)
394 × 190 × 457 mm (15.51 × 7.48 × 17.99 in)
Weight
27.20 kg (60.0 lbs)
Form factor
Base Station
Manufactured
Between 1979 and 1983 in USA

Other features

Usage
Military communication
Features + options
Noise blanker (optional)
Speech processor (optional)
Keypad (optional)
Accessories
-
RigReference ID
2525
MPN
COLLINS-HF-000380

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Collins HF-380. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Collins HF-380 is around:

  • EUR 760.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2011 EUR 3800.00 Used / Good ik5aio
