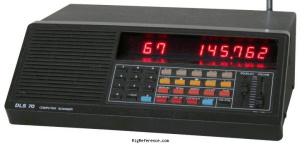

The DLS 70 is a VHF/UHF Scanner / receiver. It covers 60-89 / 108-138 / 140-179 / 380-519 MHz and has a tuning step of 12.5 kHz. The receiver system is a double-conversion superheterodyne with IF frequencies of 1st: 10.7 MHz and 2nd: 455 KHz - Ceramic filter: Kyocera F455R 15A. It features 1 memory bank with 70 channels, a built-in clock, and an LED display. The DLS 70 weighs 3.1 kg and has dimensions of 95 × 270 × 230 mm.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- 12.5 kHz
- Memories
- 70 channels in 1 bank(s) @ 10 channels/second
Receiver
- RX-range
- 60-89 / 108-138 / 140-179 / 380-519 MHz
- Modulations
- AM FM
- Sensitivity
- FM VHF: 0.4 µV (12 dB SINAD)
FM UHF: 0.8 µV (12 dB SINAD) - Selectivity
- +/- 25 kHz (-60 dB)
- Filters
- ?
- Receiver system
- Double-conversion superheterodyne
- IF-frequencies
- 1st: 10.7 MHz
2nd: 455 KHz - Ceramic filter: Kyocera F455R 15A - Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- TV-antenne + Built-in telescopic
- Impedance
- 50/75Ω
- Other
- -
Electrical
- Power requirements
- 13.2 V DC or mains + 2 × R6/AA for memory backup
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 270 × 95 × 230 mm (10.63 × 3.74 × 9.06 in)
- Weight
- 3.10 kg (6.8 lbs)
- Form factor
- Base Station
- Manufactured
- Between 198x and 198x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Built-in clock
LED display - Accessories
- -
- RigReference ID
- 2560
- MPN
- DLS-000070
Manuals, diagrams and brochures
-
No documents available for this particular model.
