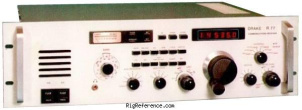

Drake R-77

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

0.01-30 MHz

Modulations

AM   AM-sync   CW   SSB

Sensitivity

?

Selectivity

?

Filters

0.3 / 0.5 / 1.8 / 2.3 / 4 kHz

Receiver system

Triple conversion superheterodyne

IF-frequencies

1st: 50MHz
2nd: 5645kHz
3rd: 4805kHz

Image rejection

?

Audio output

?

Connections

Antenna

-

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC or mains

Current drain RX

Max 2 A

TX

-

Physical

Dimensions (w×h×d)

346 × 117 × 318 mm (13.62 × 4.61 × 12.52 in)

Weight

?

Form factor

Base Station

Manufactured

Between 19xx and 19xx

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

2582

MPN

DRAKE-R-000077

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Drake R-77. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Receiver equipment, the estimated value of the Drake R-77 is around:

• USD 140 ~ USD 260

This estimate is based on similar equipment and may not reflect the exact value of this model.
