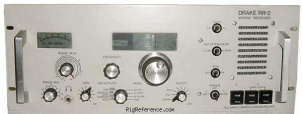

The Drake RR-2 receiver is a commercial grade communications receiver which employs solid state devices and circuity. It offers general coverage from 150 kHz to 30 MHz. The received frequency is indicated by a two-speed dial that has accurate calibrations every 1 kHz. Modular construction on easily accessible printed circuit boards is used throughout the RR-2. The use of dual gate MOS-FET transistors in the RR-2 circuity contribute to the superior inter-modulation, AGC, wide dynamic range and overload performance.
Basically a Drake RR-1 but with continuous coverage.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- ?
Receiver
- RX-range
- 0.15-30 MHz
- Modulations
- AM CW USB LSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 24V DC or mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 482 × 178 × 279 mm (18.98 × 7.01 × 10.98 in)
- Weight
- 6.35 kg (14.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2588
- MPN
- DRAKE-RR-000002
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Drake RR-2. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Receiver equipment, the estimated value of the Drake RR-2 is around:
- USD 140 ~ USD 260
This estimate is based on similar equipment and may not reflect the exact value of this model.
