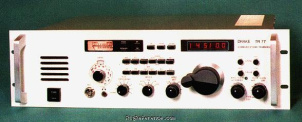

The Drake TR-77 is a HF transceiver. It covers 0.01-30 MHz in receive and 160-10 m in transmit. The maximum RF output is 150 W PEP. Power requirements are 13.8V DC. Dimensions are 117 × 346 × 318 mm. Current drain is Max 2 A in receive and Max 15 A in transmit.
General characteristics
- HAM bands
- 160m 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.01-30 MHz
- Modulations
- AM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 160-10 m
- Modulations
- CW SSB
- RF-output
- 150 W (PEP)
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 2 A
- TX
- Max 15 A
Physical
- Dimensions (w×h×d)
- 346 × 117 × 318 mm (13.62 × 4.61 × 12.52 in)
- Weight
- 6.35 kg (14.0 lbs)
- Form factor
- Unknown
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2609
- MPN
- DRAKE-TR-000077
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Drake TR-77. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Drake TR-77 is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
