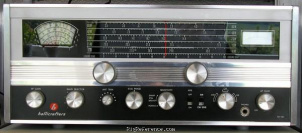

The Hallicrafters SX-130 general coverage receiver tunes from 535 to 31500 kHz in four bands. The main ranges: .535-1.61, 1.725-4.7, 4.5-13 and 11.9-31.5 MHz. Bandspread ranges: 3.5-4, 7-7.4, 13.9-14.4, 20-22 and 26-30 MHz.
The circuit consists of: 6DC6 RF Amp, 6EA8 Mixer/Osc, 6EA8 1st IF Amp/Crystal Sel., 6BA6 2nd IF Amp, 6AL5 AM Detector/NL, 6BE6 BFO/Product Detector, 6GW8 AF Amp/Output and diode.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.535-31.5 (1.610-1.725 gap)
- Modulations
- AM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Single conversion
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- -
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 479 × 203 × 248 mm (18.86 × 7.99 × 9.76 in)
- Weight
- 11.30 kg (24.9 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1965 and 1969
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- ¼" Headphone Jack
S-Meter
Bandspread
Product Detector SSB/CW
RF Gain
ANL
BF0
Antenna Trimmer
Mute Terminals
Crystal Phasing
Dial Lamp
Speaker Terminals - Accessories
- -
- RigReference ID
- 2814
- MPN
- HALLICRAFTERS-SX-000130
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Hallicrafters SX-130. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Receiver equipment, the estimated value of the Hallicrafters SX-130 is around:
- USD 159 ~ USD 295
This estimate is based on similar equipment and may not reflect the exact value of this model.
