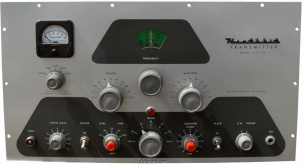

The Heathkit DX-100 is a 10-160 meters transmitter. RF output is AM: Max 125 W, CW: Max 140 W. Power requirements are Mains. Dimensions are 350 × 526 × 406 mm.
General characteristics
- HAM bands
- 160m 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Transmitter
- TX-range
- 10-160 m
- Modulations
- AM CW
- RF-output
- AM: Max 125 W, CW: Max 140 W
Connections
- Antenna
- -
- Impedance
- 50/600Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- -
- TX
- ?
Physical
- Dimensions (w×h×d)
- 526 × 350 × 406 mm (20.71 × 13.78 × 15.98 in)
- Weight
- 45.36 kg (100.1 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1955 and 1957 in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2907
- MPN
- HEATHKIT-DX-000100
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Heathkit DX-100. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Heathkit DX-100 is around:
- USD 90.00
These estimates are based on the following prices:
