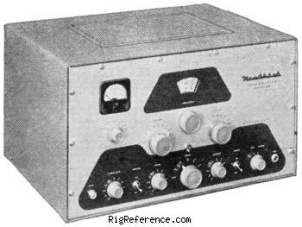

The Heathkit DX-100B is a rugged CW / phone transmitter from the early 1960's. The one-piece formed cabinet features a convenient top-access hatch for changing crystals and making other adjustments. Featured are a built-in VFO, modulator, and power supply, complete shielding to minimize TVI, and a pi network output coupling to match impedances from 50 to 72 ohms. RF output is in excess of 100 watts on phone and 120 watts on CW. For operating convenience single-knob bandswitching and illuminated VFO dial on meter face are provided.
General characteristics
- HAM bands
- 160m 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Transmitter
- TX-range
- 10-160 m
- Modulations
- AM CW
- RF-output
- AM: Max 125 W, CW: Max 140 W
Connections
- Antenna
- -
- Impedance
- 50/600Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- -
- TX
- ?
Physical
- Dimensions (w×h×d)
- 526 × 350 × 406 mm (20.71 × 13.78 × 15.98 in)
- Weight
- 45.36 kg (100.1 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1956 and 1960 in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Built-in VFO, modulator, and power supply
- Accessories
- -
- RigReference ID
- 5358
- MPN
- HEATHKIT-DX-000100B
Manuals, diagrams and brochures
-
No documents available for this particular model.
