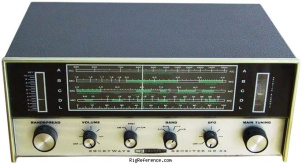

The Heathkit GR-64 is a desktop shortwave receiver covering 550 kHz to 30 MHz in 4 bands. It features a 4 tube receiver system and an S-Meter. The receiver requires mains power and draws 30 W during reception. Dimensions are 146 × 292 × 171 mm and it weighs 5.2 kg.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 550 kHz - 30 MHz in 4 bands
- Modulations
- AM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- 4 tubes
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- Clamps / screws + Built-in ferrite bar
- Impedance
- 50/75 Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- 30 W
- TX
- -
Physical
- Dimensions (w×h×d)
- 292 × 146 × 171 mm (11.50 × 5.75 × 6.73 in)
- Weight
- 5.20 kg (11.5 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1964 and 1971 in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- BFO
S-Meter - Accessories
- -
- RigReference ID
- 2912
- MPN
- HEATHKIT-GR-000064
