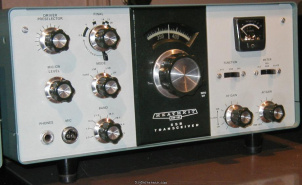

Heathkit HW-101

Desktop Shortwave Transceiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

The Heathkit HW-101 is a 10-80 meters transceiver. RF output is 100 W (80 W on 10 m). Power requirements are an external high-voltage power supply. Dimensions are 163 × 380 × 335 mm.

General characteristics

HAM bands: 80m 40m 20m 15m 10m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 10-80 m
Modulations: CW SSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 10-80 m
Modulations: CW SSB
RF-output: 100 W (80 W on 10 m)

Connections

Antenna: -
Impedance: 50/75 Ω
Other: -

Electrical

Power requirements: External high-voltage power supply
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 380 × 163 × 335 mm (14.96 × 6.42 × 13.19 in)
Weight: 8.50 kg (18.8 lbs)
Form factor: Base Station
Manufactured: Between 19xx and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 2919
MPN: HEATHKIT-HW-000101

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Heathkit Hw-101 Manual PDF - 18.01 MB, submitted by EE Ham

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Heathkit HW-101. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Heathkit HW-101 is around:

USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
