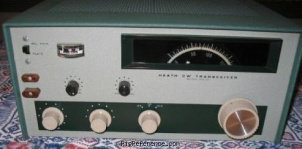

Heathkit HW-16

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

15/40/80 m (lower 250 KHz on each band)

Modulations

CW

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

XTAL TX. VFO option

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

15/40/80 m (lower 250 KHz on each band)

Modulations

CW

RF-output

90 W (input)

Connections

Antenna

-

Impedance

50 Ω

Other

-

Electrical

Power requirements

Mains

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

?

Weight

?

Form factor

Unknown

Manufactured

Between 1967 and 1976

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

2921

MPN

HEATHKIT-HW-000016

Manuals, diagrams and brochures

Assembly AND Operation Manual Heathkit HW-16 Novice Transceiver Part 1 PDF - 1.52 MB, submitted by KV4NK

Assembly AND Operation Manual Heathkit HW-16 Novice Transceiver Part 2 PDF - 1.58 MB, submitted by KV4NK

Assembly AND Operation Manual Heathkit HW-16 Novice Transceiver Part 3 PDF - 1.89 MB, submitted by KV4NK

Assembly AND Operation Manual Heathkit HW-16 Novice Transceiver Part 4 PDF - 1.59 MB, submitted by KV4NK

Assembly AND Operation Manual Heathkit HW-16 Novice Transceiver Part 5 PDF - 1.29 MB, submitted by KV4NK

Assembly AND Operation Manual Heathkit HW-16 Novice Transceiver Part 6 PDF - 2.05 MB, submitted by KV4NK
