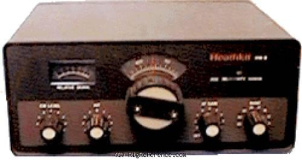

The Heathkit Model HW-9 Deluxe QRP CW Transceiver is a compact 80-through 10-meter HF transceiver designed with the avid low-power CW operator in mind. It covers the lower 250 kHz of the 80, 40, 20, and 15-meter amateur bands. When you install the Model HWA-9 Accessory Band Pack, the transceiver also covers the 30, 17, and 12-meter WARC bands and the lower 250 kHz of the 10-meter band. Broadband circuits eliminate the need to tune circuits within a band. Just turn the Band switch and select the desired frequency.
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- Typically less than 500 Hz pr hour after a 30-minute warm-up. Typically less than 150 Hz pr 30 minutes after a 90-minute warm-up
- Tuning steps
- Continuous
- Memories
- None
Receiver
- RX-range
- 10-80 m
- Modulations
- CW
- Sensitivity
- ≤ 0.5 µV for 10 dB S+N/N
≤ 0.2 µV for readable signal - Selectivity
- Narrow: 250 Hz maximum at 6 dB.
Wide: 1 kHz maximum at 6 dB. - Filters
- Passband 700 Hz (approximate)
- Receiver system
- Superheterodyne
- IF-frequencies
- ?
- Image rejection
- ≥ 60 dB
- Audio output
- 1 watt into 8-ohm load
Transmitter
- TX-range
- 10-80 m
- Modulations
- CW
- RF-output
- 4 W (3 W on 10 m)
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 11-16 V DC
- Current drain RX
- ?
- TX
- 1 A max
Physical
- Dimensions (w×h×d)
- 235 × 108 × 216 mm (9.25 × 4.25 × 8.50 in)
- Weight
- 2.10 kg (4.6 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1984 and 1991 in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- QSK
WARC option - Accessories
- -
- RigReference ID
- 2931
- MPN
- HEATHKIT-HW-000009
Manuals, diagrams and brochures
- Heathkit Manual FOR THE Deluxe QRP CW Transceiver Model HW-9 Part 1 PDF - 3.36 MB, submitted by KV4NK
- Heathkit Manual FOR THE Deluxe QRP CW Transceiver Model HW-9 Part 2 PDF - 3.21 MB, submitted by KV4NK
- Heathkit Manual FOR THE Deluxe QRP CW Transceiver Model HW-9 Part 3 PDF - 3.15 MB, submitted by KV4NK
- Heathkit Manual FOR THE Deluxe QRP CW Transceiver Model HW-9 Part 4 PDF - 2.91 MB, submitted by KV4NK
- Heathkit Manual FOR THE Deluxe QRP CW Transceiver Model HW-9 Part 5 PDF - 1.65 MB, submitted by KV4NK
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Heathkit HW-9. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Heathkit HW-9 in Good condition is around:
- USD 188 ~ USD 375
These estimates are based on the following prices:
