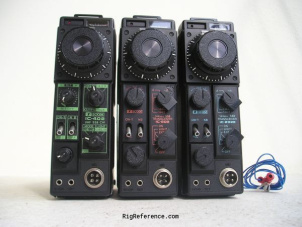

The ICOM IC-202E is a handheld VHF transceiver. It covers the frequency range of 144-146 MHz for both receive and transmit. The RF output power is 3 W. Power requirements are 13.8V DC. Dimensions are 183 × 61 × 162 mm. Current drain is 90-250 mA while receiving and 750 mA while transmitting. It features a VXO.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 144-146 MHz
- Modulations
- CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- CW SSB
- RF-output
- 3 W
Connections
- Antenna
- Built-in sweep
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 90-250 mA
- TX
- 750 mA
Physical
- Dimensions (w×h×d)
- 61 × 183 × 162 mm (2.40 × 7.20 × 6.38 in)
- Weight
- 2.00 kg (4.4 lbs)
- Form factor
- Handheld
- Manufactured
- Between 1977 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- VXO
- Accessories
- -
- RigReference ID
- 2977
- MPN
- ICOM-IC-000202E
Manuals, diagrams and brochures
- ICOM IC-202 Schematic Diagram-3.gif GIF - Unknown size, submitted by RigReference
- ICOM IC-202 Schematic Diagram-2.gif GIF - Unknown size, submitted by RigReference
- ICOM IC-202 Schematic Diagram-1.gif GIF - Unknown size, submitted by RigReference
- ICOM IC-202 Schematic Diagram-4.gif GIF - Unknown size, submitted by RigReference
