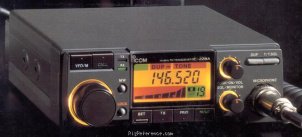

ICOM IC-228A

VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find ICOM IC-228A rigs and spare parts on eBay

The ICOM IC-228A is a VHF transceiver. It covers a frequency range of 138-174 MHz for reception and 140.1-150 MHz for transmission. The radio features one memory bank with 20 channels. Maximum RF output is 25W on high power and 5W on low power. It requires 13.8V DC power and has a maximum current drain of 6A during transmit. Dimensions are 50 × 140 × 137 mm.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: 20 channels in 1 bank(s)

Receiver

RX-range: 138-174 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 140.1-150 MHz
Modulations: FM
RF-output: High: 25 W, Low: 5 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: ?
TX: Max 6 A

Physical

Dimensions (w×h×d): 140 × 50 × 137 mm (5.51 × 1.97 × 5.39 in)
Weight: ?
Form factor: Unknown
Manufactured: Between 19xx and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 2992
MPN: ICOM-IC-000228A
