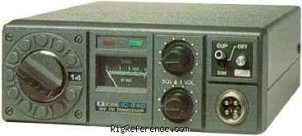

ICOM IC-240

General characteristics

HAM bands

2m

Frequency stability

?

Tuning steps

25 kHz (12.5 kHz mod exists) kHz

Memories

22 channels in 1 bank(s)

Receiver

RX-range

144-146 MHz

Modulations

FM

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

1st: 10.7 MHz
2nd: 455 kHz

Image rejection

?

Audio output

?

Transmitter

TX-range

144-146 MHz

Modulations

FM

RF-output

High: 10 W, Low: 1 W

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

156 × 58 × 218 mm (6.14 × 2.28 × 8.58 in)

Weight

?

Form factor

Mobile

Manufactured

Between 1977 and 19xx in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

22 diode programmable channels, 25 kHz spacing.

Accessories

-

RigReference ID

3005

MPN

ICOM-IC-000240

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-240. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the ICOM IC-240 is around:

• USD 215 ~ USD 400

This estimate is based on similar equipment and may not reflect the exact value of this model.
