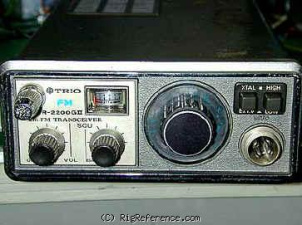

The Kenwood TR-2200GII is a mobile VHF transceiver. It covers 144-146 MHz for both receive and transmit. RF output power is selectable between High: 2 W and Low: 0.4 W. The radio has 1 memory bank with 12 channels. Power requirements are 9.6-15.6V DC. Dimensions are 58 × 135 × 191 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 12 channels in 1 bank(s)
Receiver
- RX-range
- 144-146 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- XTAL
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM
- RF-output
- High: 2 W, Low: 0.4 W
Connections
- Antenna
- Built-in sweep
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 9.6-15.6V DC
- Current drain RX
- 45 mA
- TX
- Max 700 mA
Physical
- Dimensions (w×h×d)
- 135 × 58 × 191 mm (5.31 × 2.28 × 7.52 in)
- Weight
- 1.60 kg (3.5 lbs) 10 × NiCd and mic included
- Form factor
- Mobile
- Manufactured
- Between 1976 and 197x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3443
- MPN
- KENWOOD-TR-002200GII
