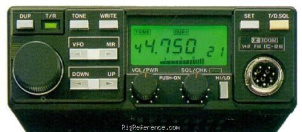

The ICOM IC-28H is a Mobile VHF Transceiver. It covers 144-146 MHz for both receive and transmit. The RF output power is selectable between High: 45 W and Low: 5 W. It features 1 memory bank with 21 memory channels. The transceiver requires 13.8V DC and has a maximum current drain of 9.5 A during transmit. Dimensions are 50 × 140 × 180 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- 12.5 / 25 kHz
- Memories
- 21 channels in 1 bank(s)
Receiver
- RX-range
- 144-146 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM
- RF-output
- High: 45 W, Low: 5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- Max 9.5 A
Physical
- Dimensions (w×h×d)
- 140 × 50 × 180 mm (5.51 × 1.97 × 7.09 in)
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 1986 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3044
- MPN
- ICOM-IC-000028H
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-28H. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the ICOM IC-28H is around:
- USD 215 ~ USD 400
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
