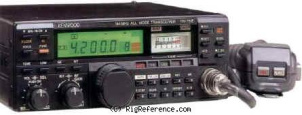

The Kenwood TR-751E is a mobile VHF transceiver. It covers 144-146 MHz for both receive and transmit. Image rejection is better than 60 dB. RF output is selectable at either 25 W or 5 W. The radio has 1 memory bank with 10 channels. Power requirements are 11-16V DC. Current drain is a maximum of 1 A while receiving and 6 A while transmitting. Dimensions are 60 × 180 × 195 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 10 channels in 1 bank(s)
Receiver
- RX-range
- 144-146 MHz
- Modulations
- All mode
- Sensitivity
- SSB/CW: Better thatn 0.13 µV (10 dB S+N/N)
FM: Better than 0.2 µV (12 dB SINAD) - Selectivity
- SSB/CW: 2.2 kHz (-6 dB), 4.8 kHz (-60 dB)
FM: 12 kHz (-6 dB), 24 kHz (-60 dB) - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- Better than 60 dB
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- All mode
- RF-output
- High: 25 W, Low: 5 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 11-16V DC
- Current drain RX
- Max 1 A
- TX
- Max 6 A
Physical
- Dimensions (w×h×d)
- 180 × 60 × 195 mm (7.09 × 2.36 × 7.68 in)
- Weight
- 2.10 kg (4.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1986 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3459
- MPN
- KENWOOD-TR-000751E
Manuals, diagrams and brochures
- Kenwood TR-751 Schematic Diagram PDF - Unknown size, submitted by RigReference
- Upload relevant documents
Reviews & stories
| Rating | Title | Submitted |
|---|---|---|
| good receiver - build quality lets down in places | 13 years ago by gm4upn |
