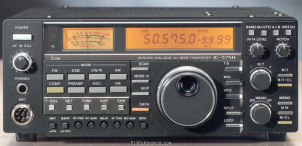

ICOM IC-575H

Desktop HF/VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The ICOM IC-575H is a desktop HF/VHF transceiver. It covers 26-56 MHz for reception and 28-29.7/50-54 MHz for transmission. The RF output power is AM: 5-25 W, FM/SSB/CW: 10-100 W. It features 1 memory bank with 99 channels. Power requirements are 13.8V DC or mains. Dimensions are 95 × 241 × 239 mm. The IC-575H weighs 6.1 kg. Current drain in receive is 1.4-1.6 A and max 20 A in transmit.

General characteristics

HAM bands: 6m
Frequency stability: ?
Tuning steps: ?
Memories: 99 channels in 1 bank(s)

Receiver

RX-range: 26-56 MHz
Modulations: AM FM CW SSB
Sensitivity: AM: <1 µV (10 dB S/N)
FM: <0.25 µV (12 dB SINAD)
SSB/CW: <0.13 µV (10 dB S/N)
Selectivity: AM: 6 kHz (-6 dB), 15 kHz (-60 dB)
FM: 15 kHz (-6 dB), 30 kHz (-60 dB)
SSB/CW: 2.3 kHz (-6 dB), 4 kHz (-60 dB)
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 28-29.7/50-54 MHz
Modulations: AM FM CW SSB
RF-output: AM: 5-25 W, FM/SSB/CW: 10-100 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC or mains
Current drain RX: 1.4-1.6 A
TX: Max 20 A

Physical

Dimensions (w×h×d): 241 × 95 × 239 mm (9.49 × 3.74 × 9.41 in)
Weight: 6.10 kg (13.5 lbs)
Form factor: Base Station
Manufactured: Between 1988 and 199x in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3123
MPN: ICOM-IC-000575H

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-575H. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the ICOM IC-575H is around:

USD 215 ~ USD 400

This estimate is based on similar equipment and may not reflect the exact value of this model.
