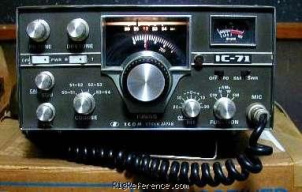

ICOM IC-71

General characteristics

HAM bands

6m

Frequency stability

± 1.5 kHz after first hour

Tuning steps

Four bands divided into 1 MHz segments. VFO barrel tuner sealed unit. Tuning range before retune is 100 kHz

Memories

None

Receiver

RX-range

50-54 MHz

Modulations

AM   FM   CW

Sensitivity

SSB: 0.25 µV
FM: 1 µV

Selectivity

CW: ≤ 4.0 kHz at -50dB
AM: ≤ 12 kHz at -40dB
FM: ≤ 32 kHz at -50dB

Filters

None

Receiver system

Single conversion superheterodyne

IF-frequencies

10.7 MHz

Image rejection

≥ 60 dB

Audio output

2 W

Transmitter

TX-range

50-54 MHz

Modulations

AM   FM   CW

RF-output

10 W

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

Mains

Current drain RX

?

TX

3 A max

Physical

Dimensions (w×h×d)

230 × 111 × 260 mm (9.06 × 4.37 × 10.24 in) (excl. feet and power supply)

Weight

5.30 kg (11.7 lbs)

Form factor

Base Station

Manufactured

Between 1968 and 1971 in Japan (not available for export)

Other features

Usage

Amateur / Ham radio operators

Features + options

BFO
Optional AC supply
Built in SWR meter with calibration pot on back of radio

Accessories

-

RigReference ID

3133

MPN

ICOM-IC-000071
