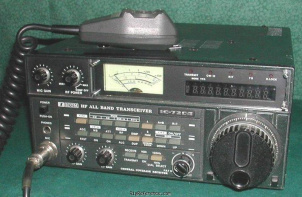

ICOM IC-720A

Desktop Shortwave Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The ICOM IC-720A is a 160-10 meters transceiver supporting AM/SSB/CW modulations. Maximum RF-output is 100 W. It requires 13.8V DC power supply. The current drain in receive mode is 900 mA and max 20 A in transmit mode. Dimensions are 111 × 241 × 311 mm.

General characteristics

HAM bands: 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 10m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 0.1-30 MHz
Modulations: AM CW SSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 10-160 m + WARC
Modulations: AM CW SSB
RF-output: 100 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: 900 mA
TX: Max 20 A

Physical

Dimensions (w×h×d): 241 × 111 × 311 mm (9.49 × 4.37 × 12.24 in)
Weight: 7.50 kg (16.5 lbs)
Form factor: Base Station
Manufactured: Between 1980 and 198x

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3138
MPN: ICOM-IC-000720A

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-720A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the ICOM IC-720A is around:

USD 215 ~ USD 400

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
