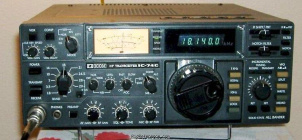

The ICOM IC-740 is an advanced transceiver covering 160 to 10 meters. Transceive frequency coverage includes: 1.8-2, 3.5-4, 7-7.3, 10-10.5, 14-14.35, 21-21.45 and 28-29.7 MHz. Receive frequency coverage includes: 18-18.5 and 24.5-25 MHz. Power is 200 watts input SSB/CW/RTTY modes. The 740 has sophisticated capabilities such as: dual digital VFOs, all-mode squelch, Notch, Passband Tuning, RIT/XIT, Crystal Calibrator and Attenuator. You also get 9 memories. Tuning increments are 1kHz/50Hz/10Hz. The florescent digital display is easy to read. There is a cooling fan on the rear panel and a speaker built into the top panel of the radio.
This model does not feature general coverage receive.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 10m
- Frequency stability
- ?
- Tuning steps
- 10Hz / 50Hz / 1 kHz
- Memories
- 9 channels in 1 bank(s)
Receiver
- RX-range
- 10-160 m + WARC
- Modulations
- FM CW USB LSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC
- Modulations
- FM CW SSB USB LSB
- RF-output
- 100 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- 20 A
Physical
- Dimensions (w×h×d)
- 286 × 111 × 374 mm (11.26 × 4.37 × 14.72 in)
- Weight
- 10.50 kg (23.2 lbs) with built-in PSU
- Form factor
- Base Station
- Manufactured
- Between 1982 and 198x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Built-in PSU options
- Accessories
- -
- RigReference ID
- 3150
- MPN
- ICOM-IC-000740
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-740. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the ICOM IC-740 in Good condition is around:
- EUR 1,200
These estimates are based on the following prices:
