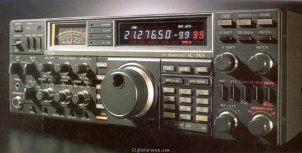

The Icom IC-765 is a full featured, multi-mode HF transceiver for the dedicated DX enthusiast. It operates from 160 to 10 meters and features a high performance 100 kHz to 30 MHz general coverage receiver built in. RF power is 10 to 100 watts SSB/CW/RTTY modes (10 to 40 watts AM). The 765 has sophisticated capabilities such as: dual digital VFOs, multi-function analog meter, all-mode squelch, Notch, Passband Tuning, RIT/XIT, pre-amp keypad and 20 dB attenuator. You also get 99 memories. The two color fluorescent digital display is easy to read. Serious CW operators will appreciate the built-in electronic keyer, full and semi break-in capability. The rear panel has an SO-239 antenna jack plus a receive only RCA phono jack. The 765 has a built in antenna tuner and this rig operates from a built-in power supply.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 99 channels in 1 bank(s)
Receiver
- RX-range
- 0.1-30 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 160-10 m + WARC
- Modulations
- AM FM CW SSB
- RF-output
- SSB/CW: 10~100 W, AM: 10~40 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 424 × 150 × 390 mm (16.69 × 5.91 × 15.35 in)
- Weight
- 17.50 kg (38.6 lbs)
- Form factor
- Base Station
- Manufactured
- Between 199x and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Built-in auto-AT
- Accessories
- -
- RigReference ID
- 3167
- MPN
- ICOM-IC-000765
Manuals, diagrams and brochures
- ICOM IC-765 Instruction Manual.pdf PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-765. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the ICOM IC-765 in Good condition is around:
- USD 900
These estimates are based on the following prices:
