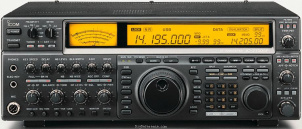

ICOM IC-775

General characteristics

HAM bands

160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  10m

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

0.1-30 MHz

Modulations

AM   FM   CW   SSB

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

10-160 m + WARC

Modulations

AM   FM   CW   SSB

RF-output

5-200 W (AM 5-50 W)

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

Mains (110-240 V AC)

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

424 × 150 × 390 mm (16.69 × 5.91 × 15.35 in)

Weight

16.70 kg (36.8 lbs)

Form factor

Base Station

Manufactured

Between 1995 and 2002 in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

Twin RX

Accessories

-

RigReference ID

3169

MPN

ICOM-IC-000775

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-775. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the ICOM IC-775 is around:

• USD 215 ~ USD 400

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
