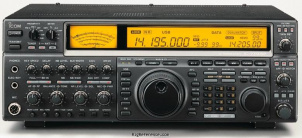

The Icom IC-775DSP lets you pull out weak signals no one else can. Serious DX'ers require serious equipment. While the 775DSP may be fun to operate, it was engineered from the ground up using high-quality components and offering features and performance you will find no where else. Enjoy 200 watts output from power MOS-FET finals with full duty cycle operation. Keypad entry, preamp, IF notch and analog meter are featured. The rear panel has a heat sink and fan and AC cord input

The ICOM IC-775 is the same as the DSP version but without the UI-100 DSP unit installed.

General characteristics

HAM bands
160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  10m
Frequency stability
± 30 Hz / hr. at + 25°C after 1 hour warm-up
Tuning steps
?
Memories
101 channels in 1 bank(s)

Receiver

RX-range
0.1-30 MHz
Modulations
AM   FM   CW   USB   LSB   RTTY
Sensitivity
SSB, CW, RTTY (10 dB S/N):
100 - 500 kHz, less than 2.0 µV
1.8 - 29.9 MHz, less than 0.16 µV
AM (10 dB S/N):
0.5 - 1.8 MHz, less than 13.0 µV
1.8-29.99 MHz, less than 2.0 µV
FM (12 dB SINAD):
28-29.99 MHz, less than 0.5 µV
Selectivity
SSB: More than 2 4 kHz/- 6 dB
Less than 4 0 kHz/ -60 dB
CW, RTTY: More than 500 Hz/-6 dB
Less than 1 0 kHz/-60 dB
AM: More than 2 4 kHz/-6 dB
Less than 4 0 kHz/-60 dB
FM: More than 15.0 kHz/-6 dB
Less than 30.0 kHz/-60 dB
Filters
?
Receiver system
Triple / Quadruple conversion superheterodyne
IF-frequencies
?
Image rejection
?
Audio output
≥ 2.6 W at 10% distortion with an 8-ohm load

Transmitter

TX-range
10-160 m + WARC
Modulations
AM   FM   CW   USB   LSB   RTTY
RF-output
5-200 W (AM: 5-50 W)

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
Mains (120 or 230 V AC)
Current drain RX
150 VA max
TX
760 VA max

Physical

Dimensions (w×h×d)
424 × 150 × 390 mm (16.69 × 5.91 × 15.35 in)
Weight
16.70 kg (36.8 lbs)
Form factor
Base Station
Manufactured
Between 1995 and 2002 in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
Built-in keyer
Automatic antenna tuner (AT)
DSP
Twin RX
Accessories
-
RigReference ID
3170
MPN
ICOM-IC-000775DSP

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Rating Title Submitted
very good transceiver 14 years ago by vk4qo

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-775DSP. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-775DSP is around:

  • EUR 143.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2009 EUR 1100.00 Used / Good iz2uqe
