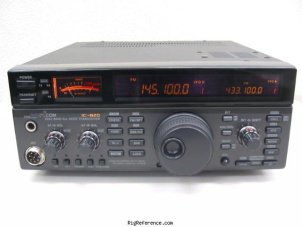

ICOM IC-820H

Desktop VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find ICOM IC-820H rigs and spare parts on eBay

The ICOM IC-820H is a VHF/UHF transceiver. It covers 144-146 / 430-440 MHz for both receive and transmit. The RF output power is FM/CW: 6-45/6-40 W, SSB: 6-35/6-30 W. It requires 13.8V DC power and has a maximum current drain of 2.5 A in receive mode and 16 A in transmit mode. The dimensions are 94 × 241 × 239 mm and it weighs 5 kg. It is 9K6 packet ready.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 144-146 / 430-440 MHz
Modulations: FM CW SSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 / 430-440 MHz
Modulations: FM CW SSB
RF-output: FM/CW: 6-45/6-40 W, SSB: 6-35/6-30 W

Connections

Antenna: -
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: Max 2.5 A
TX: Max 16 A

Physical

Dimensions (w×h×d): 241 × 94 × 239 mm (9.49 × 3.70 × 9.41 in)
Weight: 5.00 kg (11.0 lbs)
Form factor: Base Station
Manufactured: Between 1994 and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: 9K6 packet ready
Accessories: -
RigReference ID: 3174
MPN: ICOM-IC-000820H
