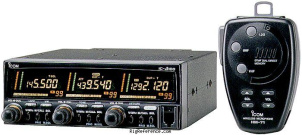

The ICOM IC-Delta 100 is a VHF/UHF transceiver. It covers 118-174 / 320-479 / 1000-1400 MHz for reception and 144-146 / 430-440 / 1240-1300 MHz for transmission (Europe & Asia). It features triple RX. The RF output is High: 50/35/10 W. Power requirements are 13.8V DC. Dimensions are 50 × 140 × 195 mm. Weight is 2.1 kg. Current drain is Max 3.2 A (RX) and Max 12 A (TX).
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 118-174 / 320-479 / 1000-1400 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 430-440 / 1240-1300 MHz (Europe & Asia)
- Modulations
- FM
- RF-output
- High: 50/35/10 W, Medium: ?/?/? W, Low: ?/?/? W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 3.2 A
- TX
- Max 12 A
Physical
- Dimensions (w×h×d)
- 140 × 50 × 195 mm (5.51 × 1.97 × 7.68 in)
- Weight
- 2.10 kg (4.6 lbs)
- Form factor
- Unknown
- Manufactured
- Between 1994 and 199x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Triple RX
- Accessories
- -
- RigReference ID
- 3187
- MPN
- ICOM-IC-DELTA-000100
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-Delta 100. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the ICOM IC-Delta 100 is around:
- USD 215 ~ USD 400
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
