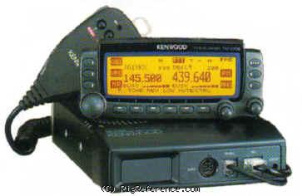

Kenwood TM-V708

VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Kenwood TM-V708 rigs and spare parts on eBay

The Kenwood TM-V708 is a VHF/UHF transceiver. It covers 144-146 / 430-440 MHz (Asia) for both receive and transmit. The RF output power is selectable: High: 20/20 W, Medium: 10/10 W, Low: 5/5 W. The TM-V708 features Alpha tags, CTCSS/DTSS, and Twin RX. It offers 1 memory bank with 200 channels and requires 13.8V DC power. The maximum current drain in receive mode is 1 A. Panel dimensions are 140 × 60 × 34 mm.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: ?
Memories: 200 channels in 1 bank(s)

Receiver

RX-range: 144-146 / 430-440 MHz (Asia)
Modulations: FM
Sensitivity: 0.16 µV (12 dB SINAD)
Selectivity: 12 kHz (-6 dB), 28 kHz (-40 dB)
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 / 430-440 MHz (Asia)
Modulations: FM
RF-output: High: 20/20 W, Medium: 10/10 W, Low: 5/5 W

Connections

Antenna: -
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: Max 1 A
TX: ?

Physical

Dimensions (w×h×d): ?
Weight: 1.40 kg (3.1 lbs)
Form factor: Unknown
Manufactured: Between 2002 and 200x

Other features

Usage: Amateur / Ham radio operators
Features + options: Alpha tags. CTCSS/DTSS. Twin RX
Accessories: -
RigReference ID: 3432
MPN: KENWOOD-TM-V000708
