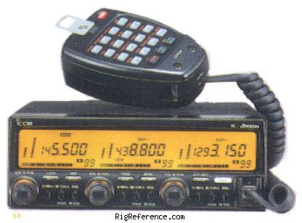

ICOM IC-Delta 100H

Mobile VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find ICOM IC-Delta 100H rigs and spare parts on eBay

Find the ICOM IC-Delta 100H on Amazon

The ICOM IC-Delta 100H is a mobile VHF/UHF transceiver. It covers 118-174 / 320-479 / 1000-1400 MHz for reception and 144-146 / 430-440 / 1240-1300 MHz (Europe) for transmission. The RF output is High: 50/35/10 W, Medium: 10/10/10 W, Low: 5/5/1 W. It requires 13.8V DC and has a maximum current drain of 12 A during transmit and 3.2 A during receive. Dimensions are 50 × 140 × 195 mm and it weighs 2.1 kg.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 118-174 / 320-479 / 1000-1400 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 / 430-440 / 1240-1300 MHz (Europe)
Modulations: FM
RF-output: High: 50/35/10 W, Medium: 10/10/10 W, Low: 5/5/1 W

Connections

Antenna: -
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: Max 3.2 A
TX: Max 12 A

Physical

Dimensions (w×h×d): 140 × 50 × 195 mm (5.51 × 1.97 × 7.68 in)
Weight: 2.10 kg (4.6 lbs)
Form factor: Mobile
Manufactured: Between 1994 and 199x in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: Triple RX
Accessories: -
RigReference ID: 3188
MPN: ICOM-IC-DELTA-000100H

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-Delta 100H. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by

Login or Register to submit prices

Links & tools
