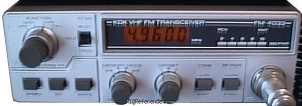

The KDK FM-4033 is a Mobile VHF Transceiver. It covers 220-225 MHz for both receive and transmit. RF output is selectable between High: 25 W and Low: 5 W. Power requirements are 13.8V DC. The current drain in receive mode is 300-800 mA, and max 6 A in transmit mode. Dimensions are 55 × 162 × 182 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 220-225 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 220-225 MHz
- Modulations
- FM
- RF-output
- High: 25 W, Low: 5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 300-800 mA
- TX
- Max 6 A
Physical
- Dimensions (w×h×d)
- 162 × 55 × 182 mm (6.38 × 2.17 × 7.17 in)
- Weight
- 1.70 kg (3.8 lbs)
- Form factor
- Mobile
- Manufactured
- Between 198x and 198x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3322
- MPN
- KDK-FM-004033
