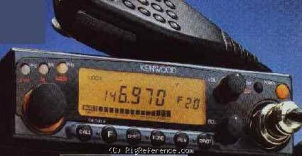

The Kenwood TM-241E is a Mobile VHF Transceiver. It covers 144-146 MHz for both receive and transmit. The RF output power is selectable between High: 50 W, Medium: 10 W, Low: 5 W. This transceiver has 1 memory bank with 20 channels. It requires 13.8V DC power. Current drain in receive mode is Max 600 mA and Max 11 A in transmit mode. Dimensions are 40 × 140 × 160 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 20 channels in 1 bank(s)
Receiver
- RX-range
- 144-146 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM
- RF-output
- High: 50 W, Medium: 10 W, Low: 5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 600 mA
- TX
- Max 11 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 160 mm (5.51 × 1.57 × 6.30 in)
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3393
- MPN
- KENWOOD-TM-000241E
Manuals, diagrams and brochures
- Kenwood TM-241 Block Diagram PDF - Unknown size, submitted by RigReference
- Kenwood TM-241 Mic Diagram PDF - Unknown size, submitted by RigReference
- Kenwood TM-241 Operating Manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
Reviews & stories
| Rating | Title | Submitted |
|---|---|---|
| Great radio, loose the tear drop DTMF mic. | 8 years ago by rreh917 |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-241E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Kenwood TM-241E is around:
- USD 10.00 ~ USD 5.00
These estimates are based on the following prices:
