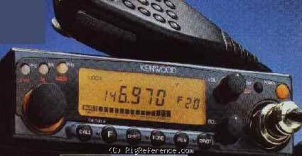

The Kenwood TM-241E is a Mobile VHF Transceiver. It covers 144-146 MHz for both receive and transmit. The RF output power is selectable between High: 50 W, Medium: 10 W, Low: 5 W. This transceiver has 1 memory bank with 20 channels. It requires 13.8V DC power. Current drain in receive mode is Max 600 mA and Max 11 A in transmit mode. Dimensions are 40 × 140 × 160 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 20 channels in 1 bank(s)
Receiver
- RX-range
- 144-146 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM
- RF-output
- High: 50 W, Medium: 10 W, Low: 5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 600 mA
- TX
- Max 11 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 160 mm (5.51 × 1.57 × 6.30 in)
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3393
- MPN
- KENWOOD-TM-000241E
Manuals, diagrams and brochures
- Kenwood TM-241 Block Diagram PDF - Unknown size, submitted by RigReference
- Kenwood TM-241 Mic Diagram PDF - Unknown size, submitted by RigReference
- Kenwood TM-241 Operating Manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-241E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Kenwood TM-241E in Good condition is around:
- USD 80 ~ USD 368
These estimates are based on the following prices:
