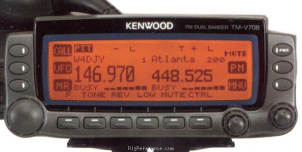

The Kenwood TM-V708A is a VHF/UHF transceiver. It covers 136-175 / 300-524 / 800-1300 MHz (Cellular blocked) for reception and 144-148 / 438-450 MHz for transmission. The radio has a maximum RF output of 50/35 W on high, 10/10 W on medium, and 5/5 W on low power. It features Alpha tags, CTCSS/DTSS, and Twin RX capability. The TM-V708A includes 1 memory bank with 200 channels and requires 13.8V DC for operation. The current drain is a maximum of 1 A while receiving and 4-11.5 A while transmitting. The panel dimensions are 140 × 60 × 34 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 200 channels in 1 bank(s)
Receiver
- RX-range
- 136-175 / 300-524 / 800-1300 MHz (Cellular blocked)
- Modulations
- AM FM
- Sensitivity
- 0.16 µV (12 dB SINAD)
- Selectivity
- 12 kHz (-6 dB), 28 kHz (-40 dB)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 / 438-450 MHz
- Modulations
- FM
- RF-output
- High: 50/35 W, Medium: 10/10 W, Low: 5/5 W
Connections
- Antenna
- N-type
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 1 A
- TX
- 4-11.5 A
Physical
- Dimensions (w×h×d)
- ?
- Weight
- 1.40 kg (3.1 lbs)
- Form factor
- Unknown
- Manufactured
- Between 2002 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Alpha tags. CTCSS/DTSS. Twin RX
- Accessories
- -
- RigReference ID
- 3433
- MPN
- KENWOOD-TM-V000708A
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-V708A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
These estimates are based on the following prices:
