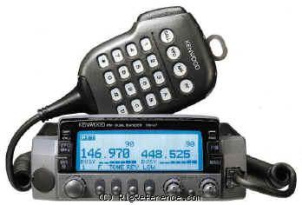

The Kenwood TM-V7A is a VHF/UHF transceiver. It covers 118-174 / 410-470 MHz for receive and 144-148 / 430-450 MHz for transmit. The RF output is selectable between High: 50/35 W, Medium: 10/10 W, Low: 5/5 W. It features 9k6 packet ready, alpha tags and twin RX. The radio has 1 memory bank with 280 channels. Power requirements are 13.8V DC. The current drain is Max 1 A for receive and Max 11 A for transmit. Dimensions are 40 × 140 × 189 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 280 channels in 1 bank(s)
Receiver
- RX-range
- 118-174 / 410-470 MHz
- Modulations
- AM FM
- Sensitivity
- <0.16 µV (12 dB SINAD)
- Selectivity
- 12 kHz (-6 dB), 28 kHz (-60 dB)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 / 430-450 MHz
- Modulations
- FM
- RF-output
- High: 50/35 W, Medium: 10/10 W, Low: 5/5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 1 A
- TX
- Max 11 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 189 mm (5.51 × 1.57 × 7.44 in)
- Weight
- 1.20 kg (2.6 lbs)
- Form factor
- Unknown
- Manufactured
- Between 199x and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 9k6 packet ready. Alpha tags. Twin RX
- Accessories
- -
- RigReference ID
- 3436
- MPN
- KENWOOD-TM-V000007A
