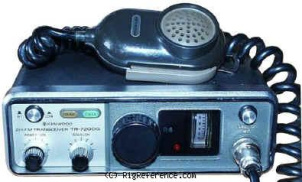

Kenwood TR-7200G

Mobile VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Kenwood TR-7200G rigs and spare parts on eBay

The Kenwood TR-7200G is a mobile VHF transceiver. It covers 144-146 MHz for both receive and transmit. The RF output power is selectable between High: 10 W and Low: 1 W. It features 1 memory bank with 22 channels. Power requirements are 13.8V DC. The current drain in receive mode is 500 mA (no input) and max 3 A in transmit mode. Dimensions are 60 × 180 × 240 mm.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: 22 channels in 1 bank(s)

Receiver

RX-range: 144-146 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: XTAL
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 MHz
Modulations: FM
RF-output: High: 10 W, Low: 1 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: 500 mA (no input)
TX: Max 3 A

Physical

Dimensions (w×h×d): 180 × 60 × 240 mm (7.09 × 2.36 × 9.45 in)
Weight: 2.50 kg (5.5 lbs)
Form factor: Mobile
Manufactured: Between 197x and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3455
MPN: KENWOOD-TR-007200G
