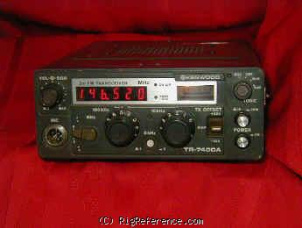

The Kenwood TR-7400A is a Mobile VHF Transceiver. It covers 144-148 MHz for both transmit and receive with 5 kHz tuning steps. RF output power is selectable between High: 25 W and Low: 5 W. The radio operates on 13.8V DC, drawing a maximum of 1 A in receive and 4.5-8 A in transmit. The TR-7400A features CTCSS, DTMF and tone burst options. Dimensions are 74 × 182 × 270 mm and the weight is 2.8 kg.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- 5 kHz
- Memories
- ?
Receiver
- RX-range
- 144-148 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- FM
- RF-output
- High: 25 W, Low: 5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 1 A
- TX
- 4.5-8 A
Physical
- Dimensions (w×h×d)
- 182 × 74 × 270 mm (7.17 × 2.91 × 10.63 in)
- Weight
- 2.80 kg (6.2 lbs)
- Form factor
- Mobile
- Manufactured
- Between 197x and 198x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS, DTMF and tone burst options
- Accessories
- -
- RigReference ID
- 3456
- MPN
- KENWOOD-TR-007400A
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
Reviews & stories
| Rating | Title | Submitted |
|---|---|---|
| Great 2 meter rig build like a tank. | 9 years ago by mareeandgary |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TR-7400A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Kenwood TR-7400A is around:
- USD 23.00
These estimates are based on the following prices:
