Kenwood TR-7800

Mobile VHF Transceiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

Find Kenwood TR-7800 rigs and spare parts on eBay

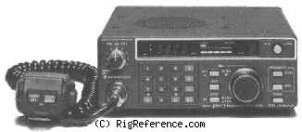

The Kenwood TR-7800 is a mobile VHF transceiver. It covers 144-146 MHz (Europe) and 143.900-149 MHz (USA) for both receive and transmit. The RF output is selectable between high (25 W) and low (5 W). It has 1 memory bank with 15 channels. Power requirements are 13.8V DC. The current drain in receive mode is 0.4-0.9 A and max 6 A in transmit mode. Dimensions are 64 × 175 × 206 mm.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: 15 channels in 1 bank(s)

Receiver

RX-range: 144-146 MHz (Europe)
143.900-149 MHz (USA)
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 MHz (Europe)
143.900-149 MHz (USA)
Modulations: FM
RF-output: High: 25 W, Low: 5 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: 0.4-0.9 A
TX: Max 6 A

Physical

Dimensions (w×h×d): 175 × 64 × 206 mm (6.89 × 2.52 × 8.11 in)
Weight: 2.10 kg (4.6 lbs)
Form factor: Mobile
Manufactured: Between 1980 and 198x in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3462
MPN: KENWOOD-TR-007800

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
