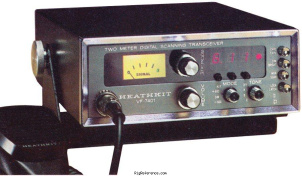

Heathkit VF-7401

General characteristics

HAM bands

2m

Frequency stability

± .0015%

Tuning steps

5 kHz

Memories

?

Receiver

RX-range

143.5-148.5 MHz

Modulations

FM

Sensitivity

0.5 µV for 12db SINAD (or 15 dB of quieting)

Selectivity

15 kHz (-6 dB)
30 kHz (-60 dB)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

-50 dB or greater

Audio output

1.5 W at less than 10% THD

Transmitter

TX-range

143.5-148.5 MHz

Modulations

FM

RF-output

10-15 W

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

12-16V DC

Current drain RX

550-750 mA

TX

4 A max

Physical

Dimensions (w×h×d)

184 × 70 × 260 mm (7.24 × 2.76 × 10.24 in)

Weight

?

Form factor

Mobile

Manufactured

Between 1980 and 1983 in USA

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

5346

MPN

HEATHKIT-VF-007401
