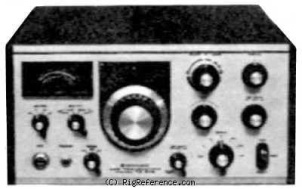

Kenwood TS-515

General characteristics

HAM bands

80m  40m  20m  15m  10m

Frequency stability

?

Tuning steps

Continuous

Memories

None

Receiver

RX-range

10-80 m

Modulations

CW   SSB

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

10-80 m

Modulations

CW   SSB

RF-output

80-100 W

Connections

Antenna

SO-239

Impedance

50/75Ω

Other

-

Electrical

Power requirements

Mains

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

330 × 195 × 355 mm (12.99 × 7.68 × 13.98 in)

Weight

9.50 kg (21.0 lbs)

Form factor

Base Station

Manufactured

Between 197x and 197x in USA

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

3489

MPN

KENWOOD-TS-000515
