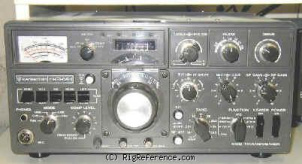

Kenwood TS-820

HF Transceiver

Specs Manuals (3) Reviews (0) Prices (0) Compare

Find Kenwood TS-820 rigs and spare parts on eBay

The Kenwood TS-820 is a HF transceiver. It covers 10-160 m for both transmit and receive. The maximum RF output is 100 W. It features 13.8 V DC and digital display options. It operates on mains power.

General characteristics

HAM bands: 160m 80m 40m 20m 15m 10m
Frequency stability: ?
Tuning steps: Continuous
Memories: None

Receiver

RX-range: 10-160 m
Modulations: CW SSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 10-160 m
Modulations: CW SSB
RF-output: Max 100 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: Mains
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): ?
Weight: ?
Form factor: Base Station
Manufactured: Between 19xx and 19xx in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: 13.8 V DC and digital display options
Accessories: -
RigReference ID: 3509
MPN: KENWOOD-TS-000820

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Kenwood TS-820S Service Bulletins PDF - Unknown size, submitted by RigReference
: Kenwood TS-820S Service Manual PDF - Unknown size, submitted by RigReference
: Kenwood TS-820S User Manual PDF - Unknown size, submitted by RigReference
