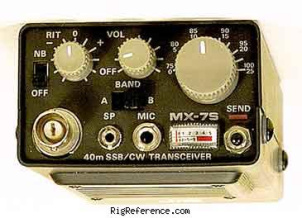

The Mizuho MX-7S is a HF transceiver covering 7-7.3 MHz with 25 KHz per XTAL. It has a VXO receiver system and a maximum RF output of 2W. The radio requires 9.5V DC power and draws 68 mA in receive mode and a maximum of 600 mA in transmit mode. Dimensions are 142 × 66 × 39 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 7-7.3 MHz (25 KHz per XTAL)
- Modulations
- CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- VXO. Max 2 XTALS
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 7-7.3 MHz (25 KHz per XTAL)
- Modulations
- CW SSB
- RF-output
- Max 2 W
Connections
- Antenna
- BNC
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 9.5V DC
- Current drain RX
- 68 mA
- TX
- Max 600 mA
Physical
- Dimensions (w×h×d)
- 66 × 142 × 39 mm (2.60 × 5.59 × 1.54 in)
- Weight
- 645 gr (1.4 lbs) batteries included
- Form factor
- Unknown
- Manufactured
- Between 1983 and 2002 in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3601
- MPN
- MIZUHO-MX-000007S
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Mizuho MX-7S. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
These estimates are based on the following prices:
